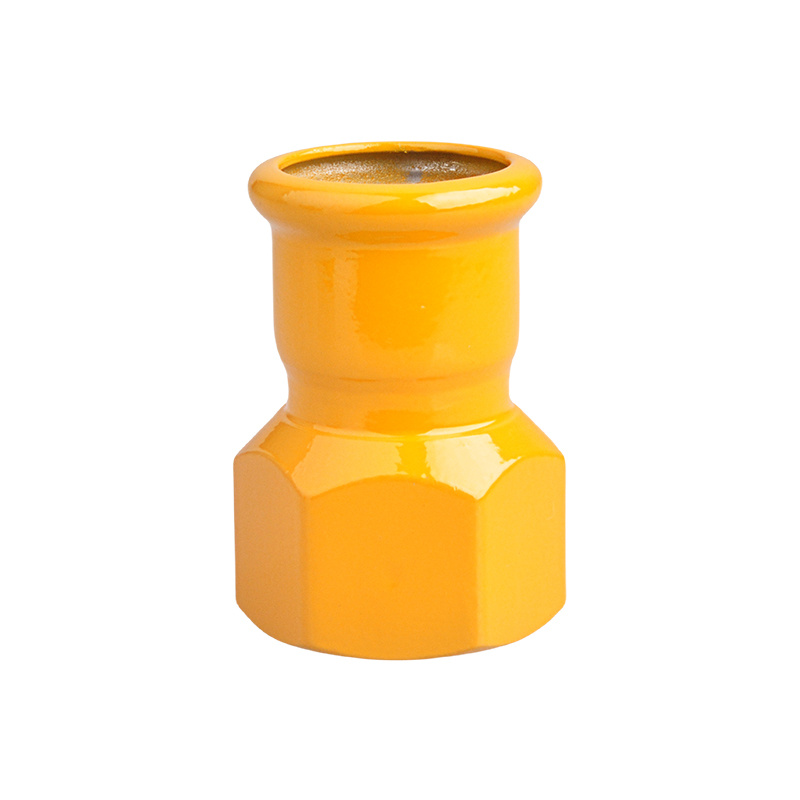

Female Straight Adapter
E-mail: warrior.wang@zjipcpiping.com
Mobile/WeChat: +8613396691363
WhatsApp:+8613396691363
Product Description
Detail display
★ Product parameters
| Code | DN | OD(mm) |
| 28601020008 | 12×RP1/2 | 15×RP1/2 |
| 28601030013 | 15×RP1/2 | 18×RP1/2 |
| 28601030014 | 20×R1/2 | 22xR1/2 |
| 28601030012 | 20×RP3/4 | 22×RP3/4 |
| 28601030015 | 20×RP1 | 22×RP1 |
| 28601040006 | 25×RP1 | 28×RP1 |
| 28601050029 | 32×RP1/2 | 35×RP1/2 |
| 28601050005 | 32×RP1 | 35×RP1 |
| 28601050004 | 32×RP1.1/4 | 35×RP1.1/4 |
| 28601050034 | 32×RP1.1/2 | 35×RP1.1/2 |
| 28601060005 | 40×RP1.1/4 | 42×RP1.1/4 |
| 28601060003 | 40×RP1.1/2 | 42×RP1.1/2 |
| 28601060004 | 40×RP2 | 42×RP2 |
| 28601070025 | 50×RP1 | 54×RP1 |
| 28601070034 | 50×RP1.1/4 | 54×RP1.1/4 |
| 28601070001 | 50×RP1.1/2 | 54×RP1.1/2 |
| 28601070014 | 50×RP2 | 54×RP2 |
★ Specification
Our carbon steel press fitting is reliable with a friendly assembly technique.
The tubes correspond in properties and dimensions with the requirements of EN 10305.
Galvanized surface finishing available.
Unique and high corrosion-resistant Epoxy Resin & EP(Electrical Plating) coating for carbon steel products.
Customized 7-15 μm of galvanizing & EP coating layer with customized colors.
Specially designed HNBR O-Ring making Press Carbon suitable for gas.
Certified and fast installing system.
Available in sizes 15 - 108mm for M profile.
★ Features
Designed for pressure up to 16 bar.
Designed for temperature ranges of -60oC to 120oC.
Compatible with various press tools and jaws (*Unique designed jaws for Epoxy resin coating & EP carbon steel press fittings).
Patented pressing indicator to detect leakage from un-pressed connections.
★ Reliability
Independent Laboratory with CNAS Certified.
Running ISO 9001,14001, OHSAS.
