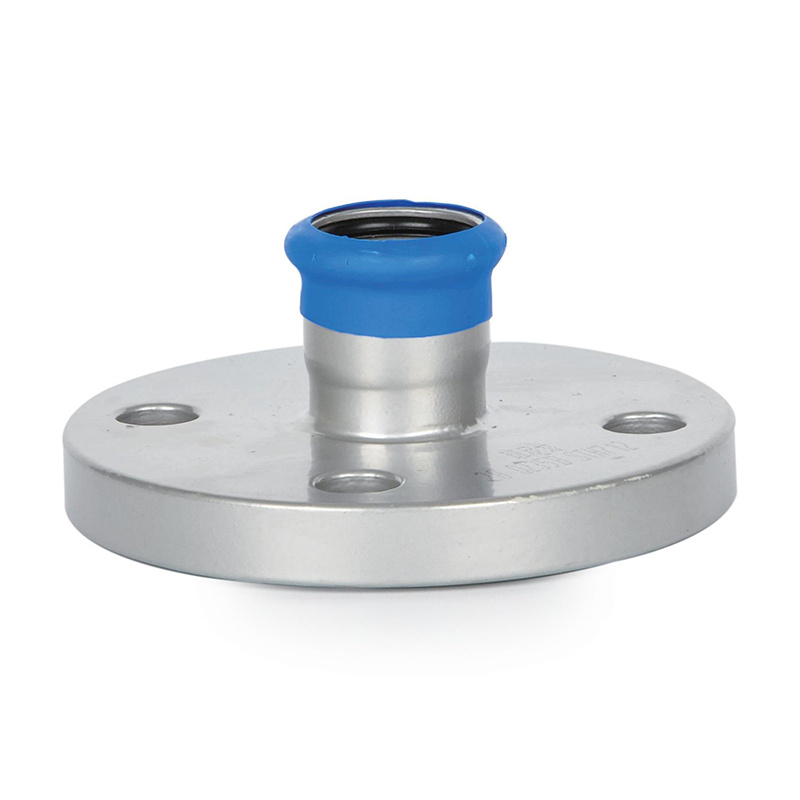

Flange Adaptor
E-mail: warrior.wang@zjipcpiping.com
Mobile/WeChat: +8613396691363
WhatsApp:+8613396691363
Product Description
Detail display
★ Product parameters
| Item Number | Nominal diameter (DN) |
Size (mm) |
L1 (mm) |
L (mm) |
D (mm) |
K (mm) |
nxd (mm) |
| 28621030023 | 20 | 22 | 20.5 | 44 | 105 | 中75 | 4×φ14 |
| 28621040034 | 25 | 28 | 22.5 | 50 | 115 | φ85 | 4×φ14 |
| 28621050032 | 32 | 35 | 26 | 65 | 140 | φ100 | 4×φ18 |
| 28621060035 | 40 | 42 | 30 | 74 | 140 | φ110 | 4×φ18 |
| 28621070044 | 50 | 54 | 34.5 | 90 | 165 | 中125 | 4×φ18 |
| 28621080090 | 65 | 76.1 | 51.5 | 109 | 185 | φ145 | 8×φ18 |
| 28621080091 | 80 | 88.9 | 58 | 123 | 200 | φ160 | 8×φ18 |
| 28621080092 | 100 | 108 | 72 | 150 | 220 | 中180 | 8×φ18 |
★ COMPRESSED AIR TECHNOLOGY
Compressed Air Technology is used throughout the industry from small workshops to large factories. Whether it is used to drive tools and machines, or to control producing or clean parts,it becomes indispensable from the point of view of modern production.
High energy costs is a major weakness of Compressed Air.Here, LEAKS in the piping system is by no means a trivial part of the energy cost.Energy losses are usually due to leaky screw connections, hemp threads drying out at the screw connections, holes due to corrosion, damage due to compressor oil seals, defective adhesive points, etc. Due to these factors, it is necessary to pay attention to the sealing performance of the pipeline when selecting the pipeline system. Industrial piping system is designed in this way, in view of the piping material and connection technology to meet the requirements of compressed air equipment, it is a good way to reduce energy costs by improving sealing s solution.
★ IMPORTANCE OF COMPRESSED
AIR PIPING SYSTEM
CB Piping Compressed Air Piping System reduces the loss of air compressor station room piping systemmaximumly, in the meanwhile, it also reduces the energy loss.Using three machines in parallel, carbon steel piping system connects with Air Compressor、 Air Receiver、Triple Filter、Dryer、Desiccant Air Dryer、the Bypass and other equipments to reduce the loss of reduced voltage,fast installation, save the installation cost and time cost. The cleanliness of piping system, excellent visual experience, standardized process , brings more security guarantee.
While ensuring the safety of gas use in your workshop pipelines, taking into account the energy saving of the overall pipeline network, all pipelines are designed to meet the pressure requirements of the gas-using equipment, and the fast installation and gas extraction plan can ensure the gas demand of your newly added equipment.
•Big ring network
•Higher ring net
•Lower Rotation 90 Degree Ring
The ring network reflects the thickness of
the pipeline, the lower fulcrum and other elements
★ FEATURE
Green
Green and Environment-Friendly
Safe
Anti-Bacteria, Sterilization, Anti-Leakage, Anti-Scald
Comfortable
Constant Temperature, Pressure, Flow. Intelligent Autocycle, “Zero” Feeling Experience.
★ Manufacturing Capability
The production of pipes and pipe fittings,all the core processes are completed in our own factory(tube making,cutting,expanding,tube bending,forming,punching,welding, chamfering, pressure testing,acid cleaning & passivating ,coating)
