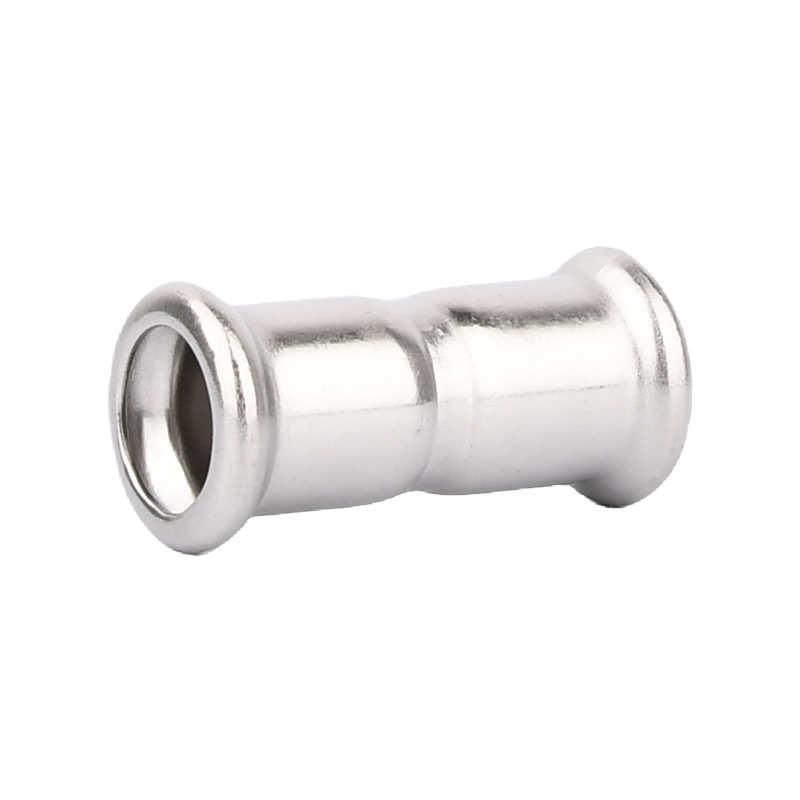

Equal Coupler
Equal Coupler
+
  • Equal Coupler
  • Equal Coupler

Equal Coupler

The production of pipes and pipe fittings,all the core processes are completed in our own factory(tube making,cutting,expanding,tube bending,forming,punching,welding, chamfering, pressure testing,acid cleaning & passivating ,coating)

E-mail: warrior.wang@zjipcpiping.com

Mobile/WeChat: +8613396691363

WhatsApp:+8613396691363

Get A Quote
Also Like

Product Description

Detail display

★ Product parameters

ITEM CODE
SS316L M PROFILE		 ITEM CODE
SS304 M PROFILE		 SIZE(MM)
DB2152700150000 DB1152700150000 15
DB2152700180000 DB1152700180000 18
DB2152700220000 DB1152700220000 22
DB2152700280000 DB1152700280000 28
DB2152700350000 DB1152700350000 35
DB2152700420000 DB1152700420000 42
DB2152700540000 DB1152700540000 54
DB2152700760000 DB1152700760000 76.1
DB2152700890000 DB1152700890000 88.9
DB2152701080000 DB1152701080000 108



★ Specification

Our stainless steel press fitting is especially used in potable water, heating,compression air,firefighting etc., systems.

Reliablity with a friendly assembly technique.

The tubes correspond in properties and dimensions with the requirements of EN 10312, Series 1 and Series 2 Available in sizes 15 - 108mm for M profile, 15 - 54mm for V profile .

Thread fittings ISO7 internal Rp series parallel and e×ternal R series taper.

Specially designed EPDM o-ring making press Inox suitable for HVAC, hot & cold drinking water applications.



★ Features

Designed for hydrostatic water pressure up to 16 bar. Designed for temperature ranges of -35°C to 110°C. Compatible with various press tools and jaws.

Patented pressing indicator to detect leakage from un-pressed connections. Specially designed high quality EPDM seal which allows leakage if the joint has not been pressed.





★ Reliability

DVGW, WRAS approved and CSTB & VDS ongoing.

Independent Laboratory with CNAS Certified.

Running ISO 9001,14001, OHSAS

Products liability
