Equal Tee
E-mail: warrior.wang@zjipcpiping.com
Mobile/WeChat: +8613396691363
WhatsApp:+8613396691363
Product Description
Detail display

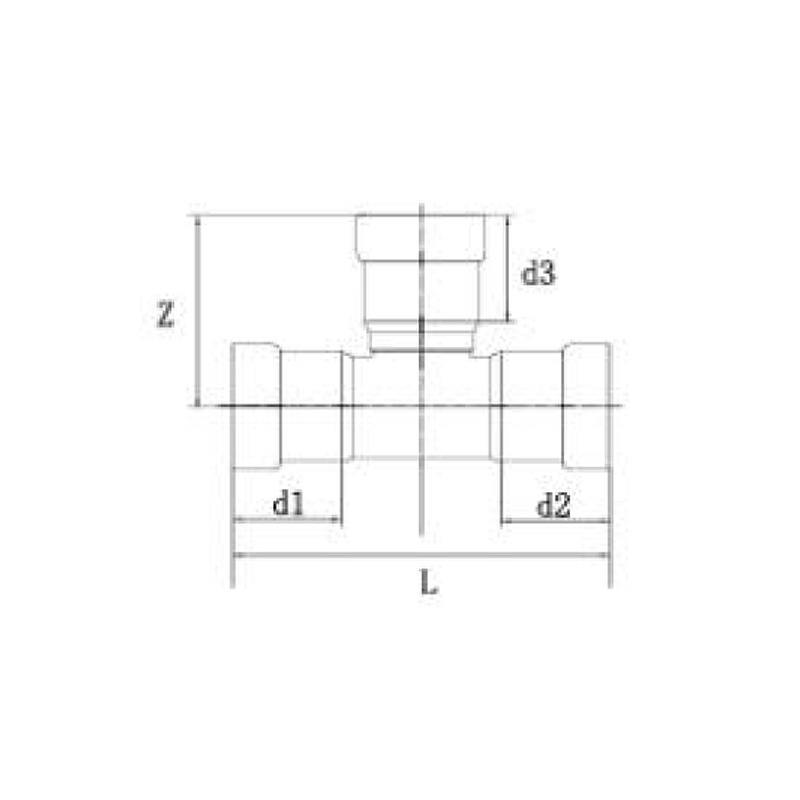

★ Product parameters
| Code EPDM | Code HNBR | Designator | L(mm) | Z(mm) | d1/d2/d3(mm) |
| 28611220006 | 28601220010 | 1/2” | 97 | 48.5 | 26 |
| 28611230012 | 28601230035 | 3/4” | 112 | 56 | 30 |
| 28611240028 | 28601240033 | 1” | 129 | 64.5 | 34.5 |
| 28611250047 | 28601250040 | 1 1/4” | 167 | 83.5 | 45.7 |
| 28611260065 | 28601260048 | 1 1/2” | 176 | 88 | 47 |
| 28611270084 | 28601270050 | 2” | 196 | 98 | 49 |
| 28601280152 | 28601280136 | 2 1/2” | 198 | 99 | 47.5 |
| 28601280153 | 28601280137 | 3” | 241 | 120.5 | 58.5 |
| 28601280154 | 28601280138 | 4” | 314 | 157 | 79.5 |
★ Specification
> Time save 60% than the traditional connection way(like welding, threading,grooving)
> Ecominic, both save installation time and labor cost
> No flame, cold connection
> Visual detection safety, reminding the press-missing by checking the plastic loop on the beads
★ Feature
CB thick-wall carbon press fittings are designed with an innovative safety feature. The fitting will be leaked before press in the normal water pressure. Which may be eye checked by workers during the installation.
Sealing Elements design has been considered the compatibility to be connected with seamless, welding, zinc plating, industrial varnishes, epoxy resin coating, or black iron pipes. The thick and curve features on the sealing assures the fittings to be connected with these pipes tightly and securely
★ Application
GAS LINE
FIRE FIGHTING AND SPRINKLER
HEATING AND COOLING
COMPRESSED AIR DELIVERY
★ Manufacturing Capability
The production of pipes and pipe fittings,all the core processes are completed in our own factory(tube making,cutting,expanding,tube bending,forming,punching,welding, chamfering, pressure testing,acid cleaning & passivating ,coating)
