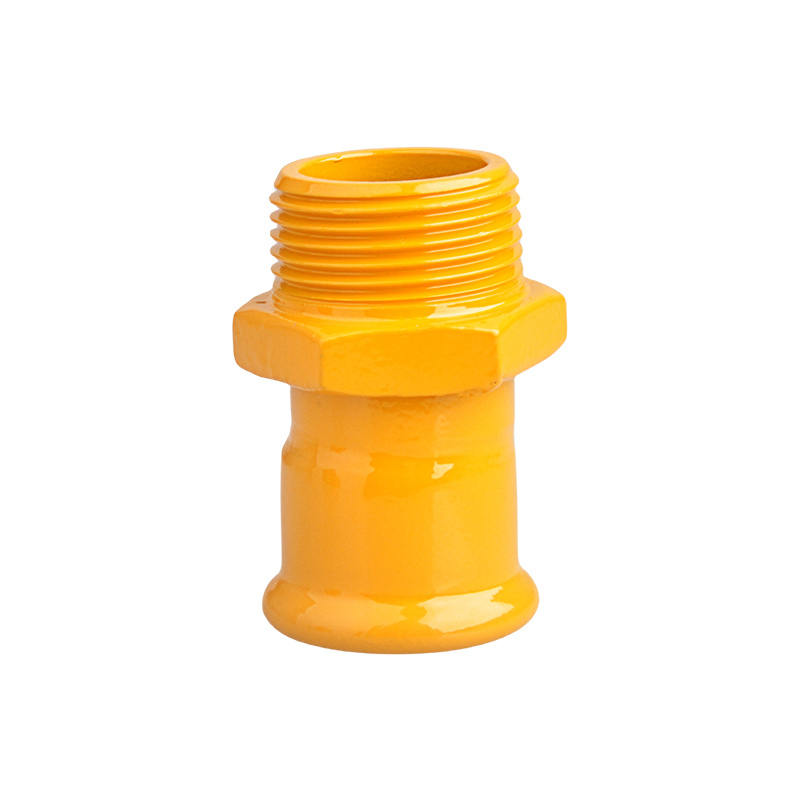

Male Straight Adapter
E-mail: warrior.wang@zjipcpiping.com
Mobile/WeChat: +8613396691363
WhatsApp:+8613396691363
Product Description
Detail display
★ Product parameters
| Code | DN | OD(mm) |
| 28601020009 | 12xR1/2 | 15×R1/2 |
| 28601030037 | 15×R1/2 | 18×R1/2 |
| 28601030034 | 20×R1/2 | 22×R1/2 |
| 28601030018 | 20×R3/4 | 22×R3/4 |
| 28601030057 | 20×R1 | 22×R1 |
| 28601040016 | 25×R1 | 28×R1 |
| 28601050008 | 32×R1 | 35×R1 |
| 28601050030 | 32×R1.1/4 | 35×R1.1/4 |
| 28601060006 | 40×R1.1/4 | 42×R1.1/4 |
| 28601060007 | 40×R1.1/2 | 42×R1.1/2 |
| 28601070003 | 50×R1.1/2 | 54×R1.1/2 |
| 28601070005 | 50×R2 | 54×R2 |
| 28601080032 | 65×R2.1/2 | 76.1×R2.1/2 |
| 28601080036 | 80×R3 | 88.9×R3 |
★ Specification
Our carbon steel press fitting is reliable with a friendly assembly technique.
The tubes correspond in properties and dimensions with the requirements of EN 10305.
Galvanized surface finishing available.
Unique and high corrosion-resistant Epoxy Resin & EP(Electrical Plating) coating for carbon steel products.
Customized 7-15 μm of galvanizing & EP coating layer with customized colors.
Specially designed HNBR O-Ring making Press Carbon suitable for gas.
Certified and fast installing system.
Available in sizes 15 - 108mm for M profile.
★ Features
Designed for pressure up to 16 bar.
Designed for temperature ranges of -60oC to 120oC.
Compatible with various press tools and jaws (*Unique designed jaws for Epoxy resin coating & EP carbon steel press fittings).
Patented pressing indicator to detect leakage from un-pressed connections.
★ Reliability
Independent Laboratory with CNAS Certified.
Running ISO 9001,14001, OHSAS.
